Tray Dual Graph Mount Small
Baldwin Iron Works is not liable for any damage to property or  personal injury during or after installing of this product. Always make sure to double and triple check before drilling or cutting and always use appropriate personal protective equipment.
DSC00524 (Large).JPG

Step 1

Choosing if you are mounting centered or offset to the right

​​

Center Mount

Mount Upper Arms To Bottom Of Top Plate

​

  • Use the counter sink bolts, washer, and nuts to fasten the upper arms to the top plate. Reference the photos below for correct mounting holes.

  • If you are wanting an offset mounting, mount the upper arms to the top plate in the four mounting hole to the right of shown below.

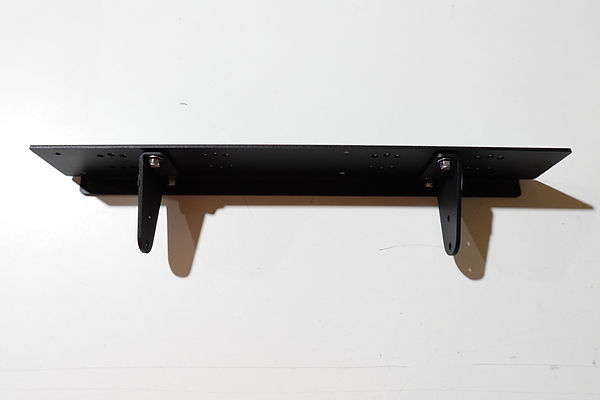

DSC00527 (Large).JPG
DSC00526 (Large).JPG

Attach Lower Arms To Upper Arms

​

  • Attach the Left /Right lower arms to the upper arms, using the  labeled hardware bag. Lower arms should be mounted on the inside of the upper arms.

DSC00528 (Large).JPG
DSC00529 (Large).JPG
DSC00530 (Large).JPG

Mounting Lower Arms To Tray

​

  • Remove the four of the screws holding down the top plate of your tray. Two on the Left and Right side closest to the front see in the photo below.

  • The screws included with the graph mount kit are larger then the factory screws included in the recessed tray kit.  The holes on the top plat must be drill out to except the larger screws.

  • After per drilling the four mounting holes in the tray, fasten the graph mount to the tray using the four larger screws.

DSC00531 (Large).JPG
DSC00532 (Large).JPG

Mount Graphs To Mount

  • Use the included hardware kit to mount graphs gimbal brackets to graph mount.

  • Included hardware may not work with all fish finder brands

Once again thank you for your purchase! If you need any help please give us a call.
